Sunday, 1 April 2012

A-10 Blockout

A few Blockouts for work in my spare time. A future/stealthed version of the A-10 Warthog





Tuesday, 26 July 2011

Fire Base Fly Through

So I've whacked the whole thing into UDK to get a quick fly around going. Getting things blocked out in 3D ALWAYS helps :D

Saturday, 16 July 2011

Sandbag parallaxing...

I've been mucking about with my sandbag textures in UDK to see how it works using Parrallax mapping (or Bump offsetting, there's so many different names for it floating around out there :s).

Basically it uses a height map to give it more depth (which I rendered out using Xnormal) and the results look OK. I don't think this does so well up close but at a distance, like the top image, it works very convincingly.

I think for the walls that you get up close to you just need to put geometry in there...

Friday, 15 July 2011

Baked bags

So I ended up making a ridiculously high poly wall in Max from the mudbox sculpts. I was actually pretty surprised that my computer and Max were able to handle the some 5 and a half million tris, and as a result it gave quite a good bake through Xnormal.

The piece itself tiles but at the moment the baked texture doesn't, so I'm going to have to tile the geometry a bit and hope my computer holds out.

But I'm pretty pleased with the results, nice and clean, can't wait to see the results of parallax normal mapping in unreal using a height map as well...

Thursday, 14 July 2011

Sandbags

Been doing some sandbag walls, this is just with the normals. It's a tilable wall piece that clocks in at 1,344 tris.

Tuesday, 28 June 2011

Mud-Rocks

I've been getting into mudbox a bit lately since I've been doing more organic structures. This is a rock sculpt thats baked down, but there are a few errors and overall the bake came out a bit grainy :s

Wednesday, 15 June 2011

Rocks Finished

Rocks are finsished now. Textured in mudbox



Afghanistan Fire base

I've been pretty busy with bits and bobs lately, from degree show work to some personal stuff. To strengthen my portfolio as and all round environment artist I've undertaken a mini project that should fit quite nicely with the organic forms I plan on practicing on.

This project is based around a Fire Support Base in Afghanistan. This base is basically a strong point that sits on top of a hill with good sight lines, which gives it the ability to give support fire and defend the region. The base features heavy machine guns, grenade machine guns, sniper posts and motors pits. For my scene I will be focusing on the machine gun nests that look out onto the valley.

These nests are trenches that are dug into the side of the hill and then fortified further using sandbags, wire boxes, rocks and wood beams for support. These trenches also double up as living quarters, which would be a great chance to get some human touches in there.

This nest is based off of a real life base, which was featured in the documentary Ross Kemp in Afghanistan. It has a fairly comprehensive base tour that shows quite a lot of details and traits of the fortifications.

I plan to use UDK, and to use UDK terrain to create some nice looking Afghanistan valleys for the machine guns to look out onto.

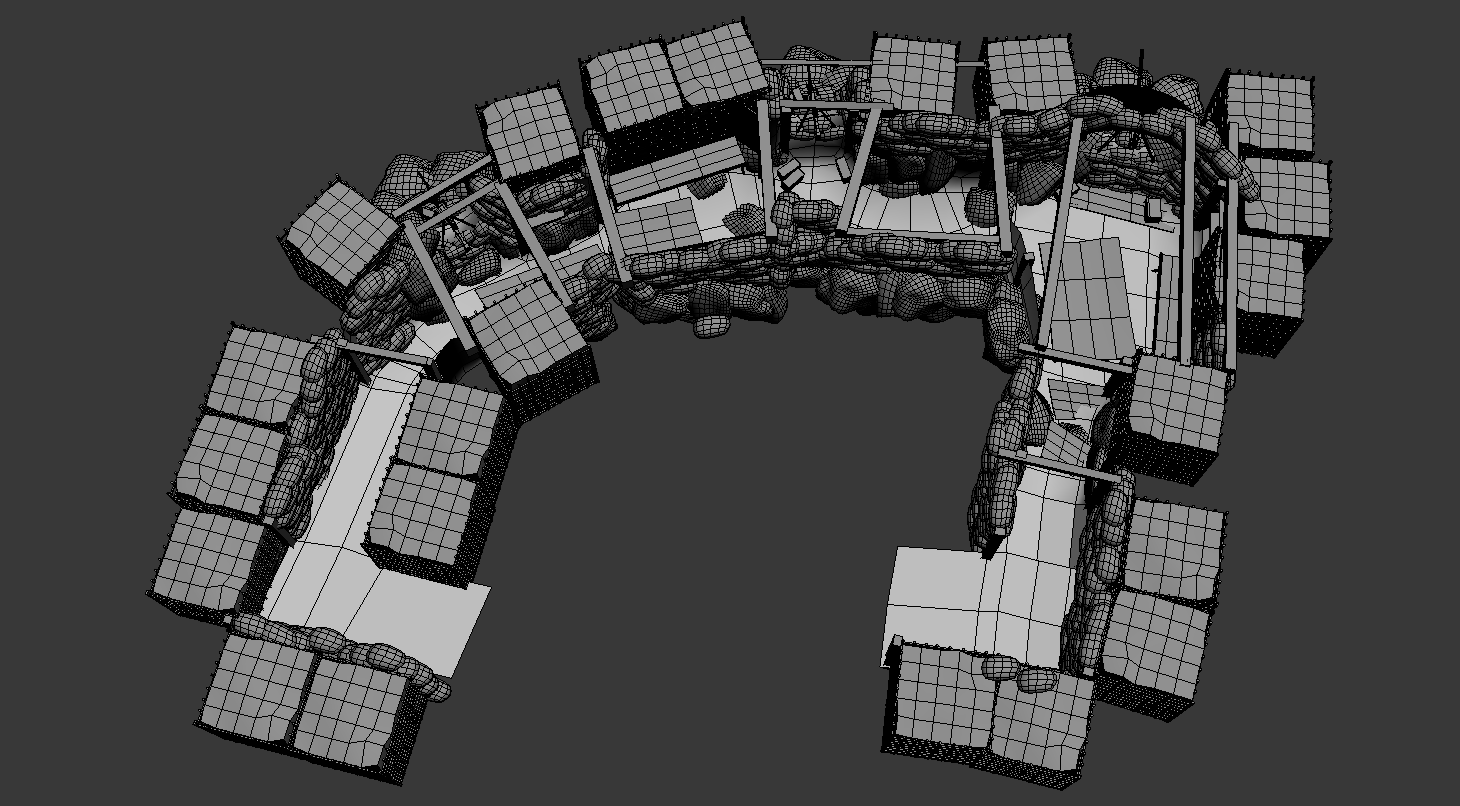

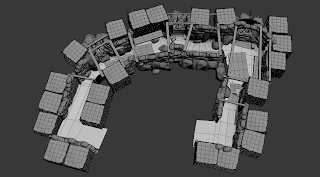

This is my block out below, taken about 4-5 hours it maps out my ideas and preferred layout of the trenches and the sort of details I want to include. As ever I aim to reuse as many assets as possible to get a modular and efficiant scene. More to come soon...



















Rocking out!


I really need to do more organic structures to expand my portfolio and skills, so first off rocks.

This is a method that uses a combination of several noise, displacement and turbosmooth modifiers. All non destructible and highly editable!

Thursday, 28 April 2011

Spitfire revisited pt.2

And here's a few more shots of the Spitfire...
